KONE TRANSITMASTER™ 140
Efficient people flow for demanding environments
Product information
Description

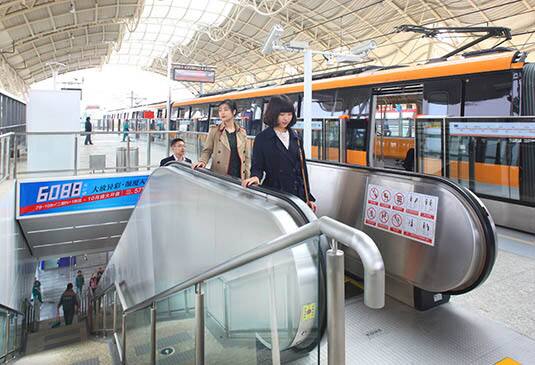

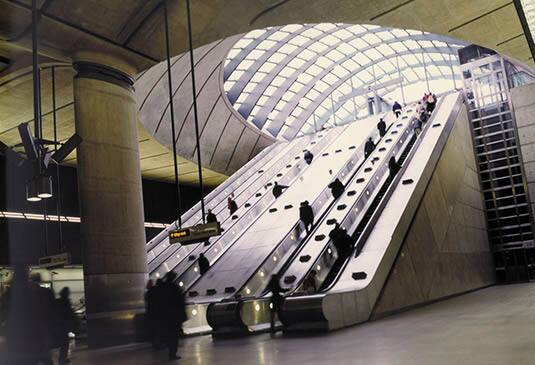

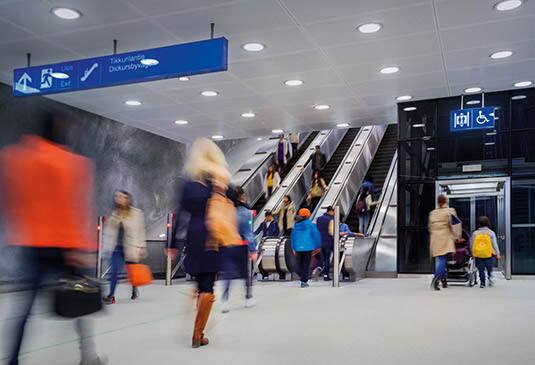

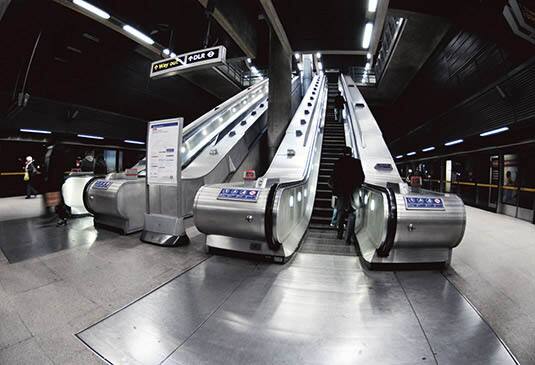

The KONE TransitMaster™ 140 is a highly durable escalator designed for the most demanding public transportation environments, such as metro stations and airports.
Specifications
- Operational environment: indoor, outdoor
- Speed: 0.75, 0.65, 0.5 m/s; 0.4 m/s with inverter
- Inclination: 27.3–30º
- Step width: 1000 mm
- Vertical rise: up to 18 m
Safety
- Safety is the starting point for every KONE solution. KONE TransitMaste 140 conforms to all local and international safety codes.
- We provide standard safety features including comb plate impact device switches and emergency stop buttons for passengers.
Tools and downloads
Options and highlights

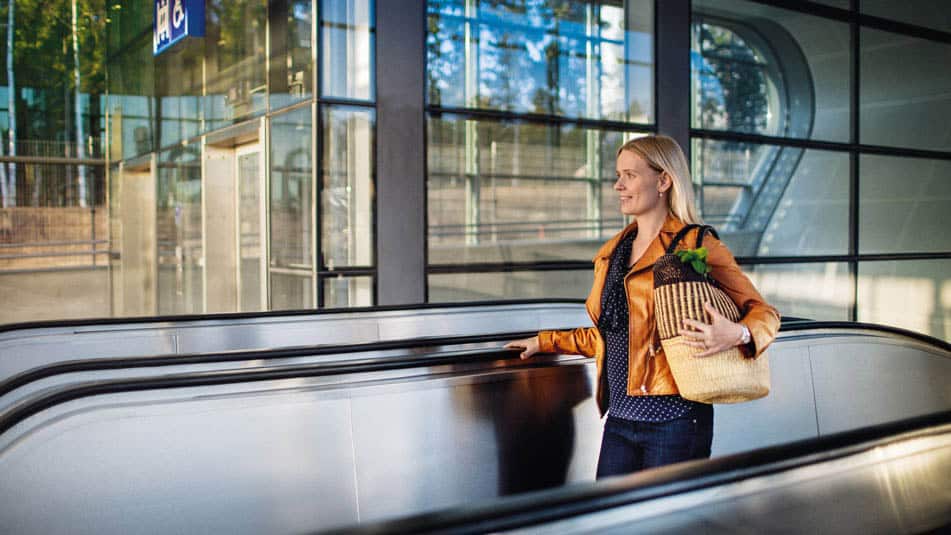

ECO-EFFICIENCY
- Smart operational modes and inverter optimize energy consumption under different load conditions
- Long lasting LED lighting is up to 80% more efficient than fluorescent lighting and lasts up to 10 times longer
- Energy efficient inverter provides smooth speed regulation during standby operation and minimizes energy consumption at full speed
- The optional regenerative technology cuts power consumption by recycling energy and feeding it back into the system
- The lubrication-free pallet chain saves oil, reduces chain wear, and decreases fire risk
SAFETY ENHANCEMENT
In addition to the standard safety features, we offer optional safety features including
- Audible alarms and traffic signalization provide clear guidance on escalator travel direction
- Alarm for travel direction if passengers enter an escalator in the wrong direction
- New traffic signalization solutions and colored step demarcations for extra visual guidance
- Four-step horizontal section at the top and bottom of the escalator makes exit and entry smooth and safe
- Extensive monitoring options such as KONE Remote Monitoring™ and KONE E-link™ to integrate with your building management systems

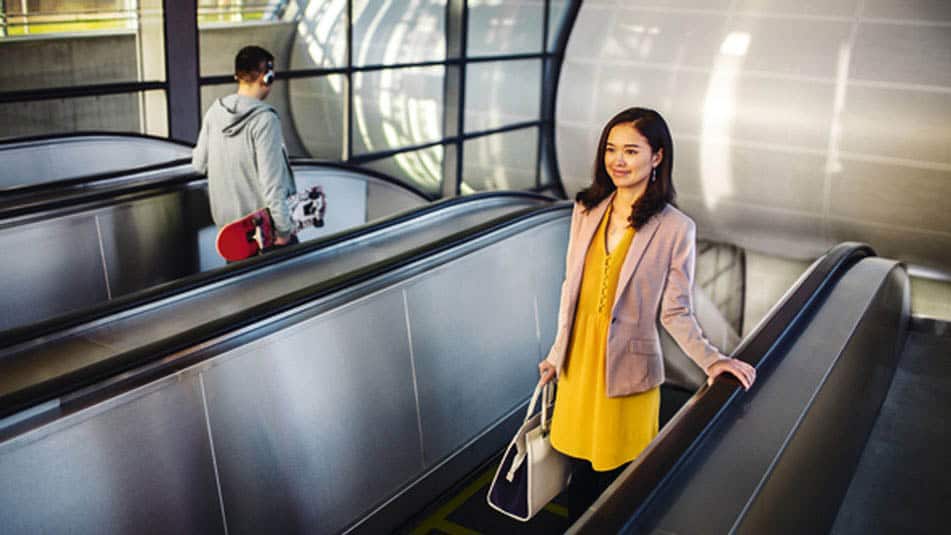

DESIGN
High quality visual design for the best possible user experience
- Innovative and attractive lighting solutions that also improve passenger guidance and safety
- Wide range of design options to create stunning visual effects and perfectly match your building’s architecture
- High quality component finishes and a harmonized look and feel throughout the KONE product portfolio
Contact us for a detailed cost estimate
Saistītās tēmas
Other escalator and autowalk solutions
| Product name
| Description (+type)
| Segment
| Maximum rise
| Speed
| Inclination
| Duty cycle
| Environment
|
| TravelMaster™ 110
| escalator | Commercial, retail, hotel, office
| 13 m
| 0.4, 0.5 m/s
| 30°, 35°
| 12-16 hours/day
| Indoor, outdoor, semi-outdoor
|
| TravelMaster™ 115
| Inclined autowalk | Commercial, retail, hotel, office
| 8 m
| 0.4, 0.5 m/s
| 10°, 11°, 12°
| 12-16 hours/day
| Indoor, semi-outdoor
|
| TransitMaster™ 120
| escalator | Infrastructure
| 15 m
| 0.4, 0.5, 0.65, 0.75 m/s | 27.3°, 30°, 35° | 20-24 hours/day | Indoor, semi-outdoor, outdoor
|
| TransitMaster™ 165
| horizontal autowalk | Infrastructure
| 15-60 m
| 0.4, 0.5, 0.65, 0.75 m/s
| 0-6°
| 20-24 hours/day
| Indoor, outdoor |
| TransitMaster™ 185
| horizontal autowalk | Infrastructure
| 15-100 m
| 0.4, 0.5, 0.65, 0.75 m/s
| 0-6°
| 20-24 hours/day
| Indoor, semi-outdoor |
| KONE InnoTrack™
| horizontal autowalk
| Infrastructure
| 15-60 m
| 0.5, 0.65 m/s
| 0°
| 20-24 hours/day
| Indoor |
