KONE TRANSITMASTER™ 120
Designed for demanding people flow
Product information
Description

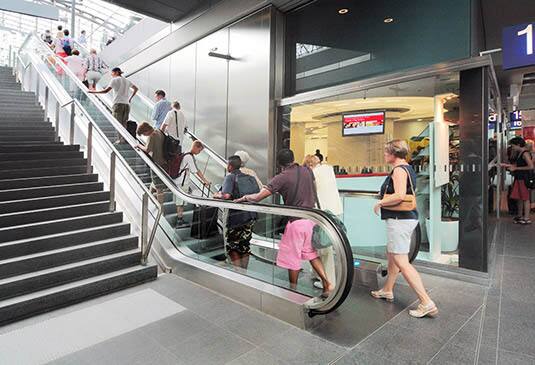

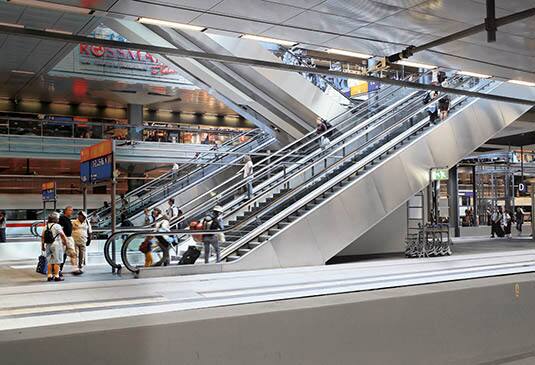

The KONE TransitMaster™ 120 is a durable, eco-efficient escalator optimized for transit centers. It provides a smooth, safe ride and a pleasant passenger experience, even under the most demanding traffic conditions.
Specifications
- Operational environment: indoor, semi-outdoor, outdoor
- Speed: 0.75, 0.65, 0.5 m/s; 0.4 m/s with inverter
- Inclination: 27.3º, 30º, 35º
- Step width: 800, 1000 mm
- Vertical rise: up to 15 m
Safety
- Safety is the starting point for every KONE solution. KONE TransitMaster 120 conforms to all local and international safety codes.
- We provide standard safety features including comb plate impact device switches and emergency stop buttons for passengers.
Tools and downloads
Options and highlights

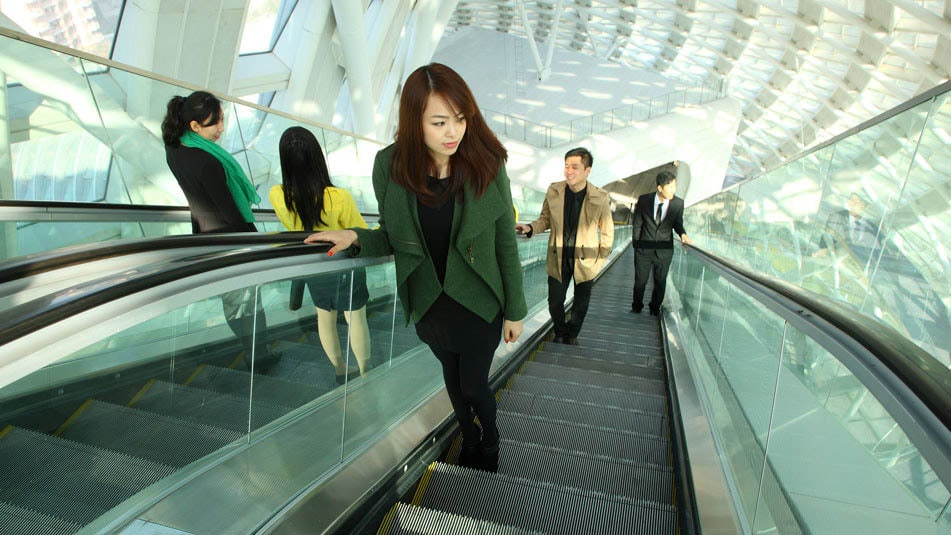

ENERGY-EFFICIENCY
- Smart operational modes and inverter optimize energy consumption under different load conditions
- Long lasting LED lighting is up to 80% more efficient than fluorescent lighting and lasts up to 10 times longer
- Energy efficient inverter provides smooth speed regulation during standby operation and minimizes energy consumption at full speed
SAFETY ENHANCEMENT
In addition to the standard safety features, we offer optional safety features including:
- New traffic signalization solutions to provide extra guidance
- Audible alarms provide clear guidance on escalator travel direction
- Alarm for travel direction if passengers enter an escalator in the wrong direction
- Fall-prevention barrier and extended balustrades provide additional passenger protection
DESIGN
High quality visual design for the best possible user experience:
- Innovative and attractive lighting solutions that also improve passenger guidance and safety
- Wide range of design options to create stunning visual effects and perfectly match your building’s architecture
- High quality component finishes and a harmonized look and feel throughout the KONE product portfolio
Contact us for a detailed cost estimate
Saistītās tēmas
Other escalator and autowalk solutions
| Product name
| Description (+type)
| Segment
| Maximum rise
| Speed
| Inclination
| Duty cycle
| Environment
|
| TravelMaster™ 110
| escalator | Commercial, retail, hotel, office
| 13 m
| 0.4, 0.5 m/s
| 30°, 35°
| 12-16 hours/day
| Indoor, outdoor, semi-outdoor
|
| TravelMaster™ 115
| Inclined autowalk | Commercial, retail, hotel, office
| 8 m
| 0.4, 0.5 m/s
| 10°, 11°, 12°
| 12-16 hours/day
| Indoor, semi-outdoor
|
| TransitMaster™ 140
| escalator | Infrastructure
| 18 m
| 0.4, 0.5, 0.65, 0.75 m/s | 27.3°, 30° | 20-24 hours/day | Indoor, outdoor |
| TransitMaster™ 165
| horizontal autowalk | Infrastructure
| 15-60 m
| 0.4, 0.5, 0.65, 0.75 m/s
| 0-6°
| 20-24 hours/day
| Indoor, semi-outdoor |
| TransitMaster™ 185
| horizontal autowalk | Infrastructure
| 15-100 m
| 0.4, 0.5, 0.65, 0.75 m/s
| 0-6°
| 20-24 hours/day
| Indoor, semi-outdoor |
| KONE InnoTrack™
| horizontal autowalk
| Infrastructure
| 15-60 m
| 0.5, 0.65 m/s
| 0°
| 20-24 hours/day
| Indoor |
